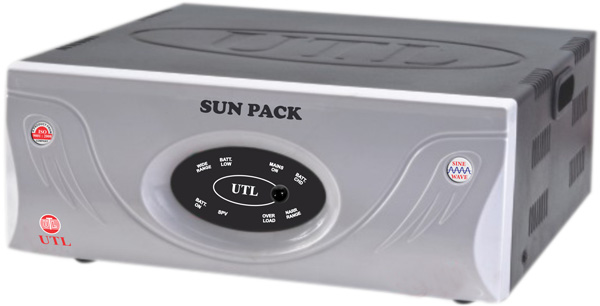

PARAMETERS |
|
UNITS |
825 VA (12V) |
1425VA (24V) |
OPERATION LOGIC |
First priority |
|
Solar charging |
Solar charging |
|
Second priority |
|
Solar + Grid charging (if PV low) |
Solar + Grid charging (if PV low) |
|
Third priority |
|
Grid charging |
Grid charging |
INPUT |
Voltage |
V |
100-290 (+/- 5V) / 170-260 (+/- 5V) |
100-290 (+/- 5V) / 170-260 (+/- 5V) |
|
Frequency |
Hz |
50 (as per grid supply) |
50 (as per grid supply) |
CHARGE CONTROLLER |
Technology |
|
Switch |
Switch |
|
Precise Control |
|
Micro Controller Based Design |
Micro Controller Based Design |
|
Peak Open-Circuit Voltage |
V |
PVOC <22.5V |
PVOC < 45V |
|
Charging Mode (Float) |
V |
13.2 / 13.8 |
26.4 / 27.6 |
|
Charging Mode (Boost) |
V |
14.3 / 14.5 |
28.6 / 29.0 |
|
Charging Current |
A |
7 / 10 |
7 / 10 |
|
Battery low cut |
V |
10.0 +/- 0.2V |
10.0 +/- 0.2V |
|
No load shut down (optional) |
|
Available (Minimum load sense : 15W) |
Available (Minimum load sense : 15W) |
BATTERY DETAILS |
Nominal voltage |
V |
12 |
24 |
|
Type |
|
LMLA / SMF / Tubular |
LMLA / SMF / Tubular |
INVERTER SPECIFICATIONS |
Output Voltage (AC) |
V |
220 ± 5% |
220 ± 5% |
|
Output Frequency |
Hz |
50 ± 0.05% |
50 ± 0.05% |
|
Efficiency |
% |
>80 |
>80 |
|
Power factor |
|
0.8 lag |
0.8 lag |
|
Wave Form type |
|
Sine wave |
Sine wave |
|
Battery low alarm |
V |
10.4 +/- 0.2V |
20.4 +/- 0.2V |
PROTECTIONS |
Panel / Battery Reverse |
|
Provided through DC fuse |
Provided through DC fuse |
|
No Reverse Current Flow from Battery to Solar Array |
|
Provided |
Provided |
|
Load Short Circuit |
|
Shut Down |
Shut Down |
INDICATIONS |
LEDs & BUZZER |
|
Panel ON, Overload, Charging On, Battery Low |
Panel ON, Overload, Charging On, Battery Low |
OVERLOAD |
101% - 120% |
|
7 times ON/OFF, then Shut Down |
7 times ON/OFF, then Shut Down |
|
121% - 300% |
|
Output voltage is halved |
Output voltage is halved |
|
> 300% |
|
Immediately Shut down |
Immediately Shut down |
GENERAL |
Operating Temperature |
°C |
0 to + 40 |
0 to + 40 |
|
Storage Temperature |
°C |
0 to + 55 |
0 to + 55 |
|
Humidity |
% |
0 to 95 |
0 to 95 |
|
Acoustic Noise |
dB |
<60 |
<60 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
